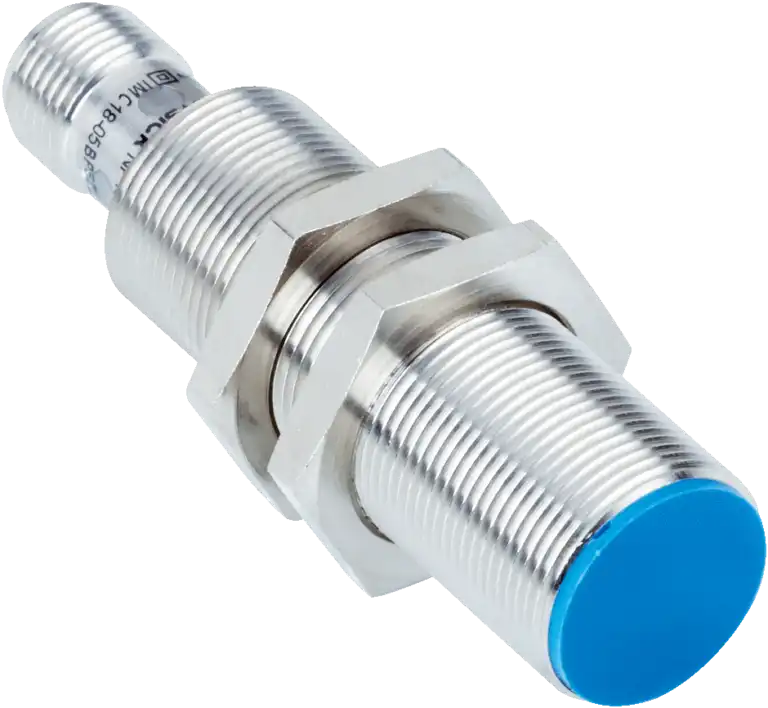

Индуктивный датчик SICK IMC18-08BPPVC0SA00, артикул 1079292

Индуктивный датчик SICK IMC18-08BPPVC0SA00, артикул 1079292.

Расстояние срабатывания Sn: 0 mm ... 8 mm 1) [примечание 1]. Напряжение питания: 10 V DC ... 30 V DC 1) [примечание 2]. Коммутационный выход: PNP. Функция выхода: NC / NO. Интерфейс связи: IO-Link V1.1.

Семейство: IMC. При подборе сверяйте артикул 1079292 и полное обозначение IMC18-08BPPVC0SA00.

Примечания к параметрам (EN)

1. 1) Adjustable. 2) When installed in conductive materials, the sensors must protrude by distance E (E = 2 mm). 3) With gold plated contact pins. 4) According to EN 60529. 5) According to ISO 20653:2013-03.

2. 1) IO-Link mode: 18 VDC ... 30 VDC. 2) At I a max. 3) To comply with EN 60947-5-2, a hysteresis of approx. 10% must be set. 4) Supply voltage U B and constant ambient temperature Ta. 5) Of Sr. 6) 200 mA total for both switching outputs. 7) Valid if toothed side of nut is used.

3. 1) SIO Direct: sensor operation in standard I/O mode without IO-Link communication and without using internal sensor logic or time parameters (set to "direct"/"deactivated"). 2) SIO Logic: Sensor operation in standard I/O mode without IO-Link communication. Sensor-internal logic or timing parameters plus Automation Functions used. 3) IOL: Sensor operation with full IO-Link communication and usage of logic, timing and Automation Function parameters.
